138 0660 2375 ■不锈钢滚轮，冲头及弹簧
■可选配M18x1.5索头
|

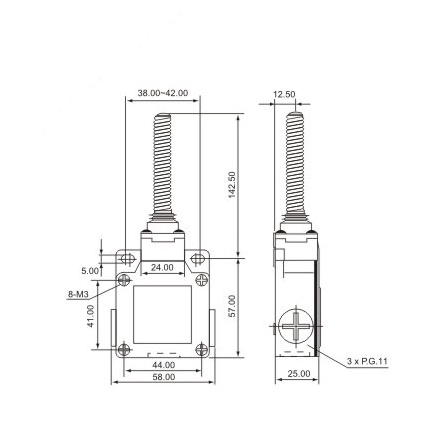

型号 |
LSA |
LSA-001 |
LSA-003 |
LSA-012 |
LSA-021 |
LSA-041 |
LSA-031 |
LSA-051 |
LSA-061 |
LSA-071 |

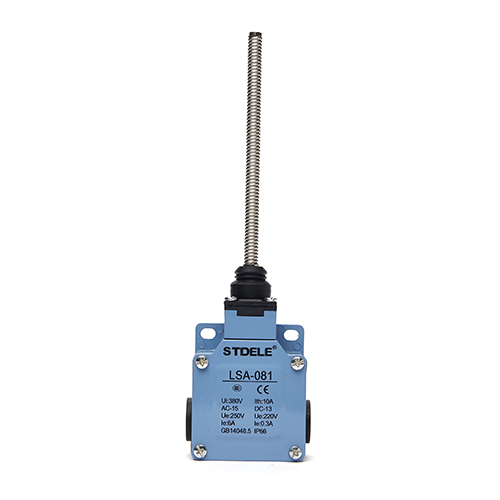

LSA-081 |
|
操作力 |
OF(最大) |
800g |
800g |
800g |
400g-cm |
400g-cm |
400g-cm |
400g-cm |
150g |
150g |
150g |
|
回弹力 |
RF(最小) |
400g |
400g |
400g |
100g-cm |
100g-cm |
100g-cm |
100g-cm |
50g |
50g |
50g |
|
前预行程 |
PT(最大) |
1.8mm |
1.8mm |
1.8mm |
20° |
20° |
20° |
20° |
30mm |
30mm |
30mm |
|
触发位置 |
TP±10% |
2.0mm |
2.0mm |
2.0mm |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
22.5° |
|
行程移动分辨率 |
MD(最大) |
1.2mm |
1.2mm |
1.2mm |
10° |
10° |
10° |
10° |
14° |
14° |
14° |
|
触后行程 |
OT(最小) |
4.0mm |
4.0mm |
4.0mm |
75° |
75° |
75° |
75° |
20mm |
20mm |
20mm |
|
累积总行程 |
TT |
5.8mm |
5.8mm |
5.8mm |
95° |
95° |
95° |
95° |
50mm |
50mm |
50mm |
|
摇臂转换分角度 |
|
|
|
|
22.5° |
22.5° |
22.5° |
22.5° |
|
|
|
| 双断开机械功用 | INO+INC Force Break snap action强迫断开快速机芯 |
| 额定电压/电流 | 10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4 |
| 接触电阻 | 25mΩ max. (initial value) |
| 绝缘电阻 | 100mΩ min. (at 500VDC) |
| 电介强度 | 1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity |
| 1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts | |
| 1500VAC, 50/60 Hz for 1 minute between each terminal and ground | |
| 电气寿命 | 500,000 at 10A 250VAC Resistive |
| 机械寿命 | 10, 000, 000 operations min. (under rated conditions) |
| 操作速度 | 5mm/s to 0.5m/s |
| 防水防尘能力 | IP66(防压力水柱级) |
| 上升温度 | Max 30℃ over ambient temperature at rated voltage/current |
| 合乎标准 | Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660 |
| 操作温度 | -5℃~+65℃ (with no icing) |
| 保存温度 | -5℃~+65℃ (with no icing) |
| 湿度 | 95% RH Max. |
| 冲击系数 | Mechanical durable: 1000m/s2 min. |
| Malfunction: 300m/s2 min. | |
| 振动频率 | Malfunction: 10 to 55Hz, 1.5mm double amplitude |
| 端子螺丝扭力 | 6-8 kgf-cm |
| 其他螺丝扭力 | Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm |
| 裸铜线尺寸 | φ2 Max |
| 电缆尺寸 | φ12 Max(IP 65 if use cable φ8-9) |
