■坚硬金属外壳,极大摇臂角度±95°
■不锈钢滚轮,冲头及弹簧
■可选配M18x1.5索头

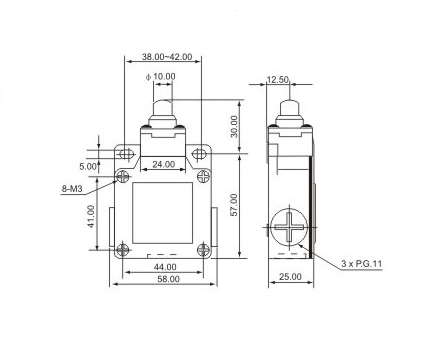

规格
型号
|
LSA
|
LSA-001
|
LSA-003
|
LSA-012
|
LSA-021
|
LSA-041
|
LSA-031
|
LSA-051
|
LSA-061
|
LSA-071
|
LSA-081
|
操作力
|
OF(最大)
|
800g
|
800g
|
800g
|
400g-cm
|
400g-cm
|
400g-cm
|
400g-cm
|
150g
|
150g
|
150g
|
回弹力
|
RF(最小)
|
400g
|
400g
|
400g
|
100g-cm
|
100g-cm
|
100g-cm
|
100g-cm
|
50g
|
50g
|
50g
|
前预行程
|
PT(最大)
|
1.8mm
|
1.8mm
|
1.8mm
|
20°
|
20°
|
20°
|
20°
|
30mm
|
30mm
|
30mm
|
触发位置
|
TP±10%
|
2.0mm
|
2.0mm
|
2.0mm
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
行程移动分辨率
|
MD(最大)
|
1.2mm
|
1.2mm
|
1.2mm
|
10°
|
10°
|
10°
|
10°
|
14°
|
14°
|
14°
|
触后行程
|
OT(最小)
|
4.0mm
|
4.0mm
|
4.0mm
|
75°
|
75°
|
75°
|
75°
|
20mm
|
20mm
|
20mm
|
累积总行程
|
TT
|
5.8mm
|
5.8mm
|
5.8mm
|
95°
|
95°
|
95°
|
95°
|
50mm
|
50mm
|
50mm
|
摇臂转换分角度
|
|
|
|
|
22.5°
|
22.5°
|
22.5°
|
22.5°
|
|
|
|
双断开机械功用
|
INO+INC Force Break snap action强迫断开快速机芯
|
额定电压/电流
|
10(4)A, 125, 250VAC / 6(2)A, 380VAC For inductance Load, Cosφ=0.4
|
接触电阻
|
25mΩ max. (initial value)
|
绝缘电阻
|
100mΩ min. (at 500VDC)
|
电介强度
|
1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
|
1500VAC, 50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
|
1500VAC, 50/60 Hz for 1 minute between each terminal and ground
|
电气寿命
|
500,000 at 10A 250VAC Resistive
|
机械寿命
|
10, 000, 000 operations min. (under rated conditions)
|
操作速度
|
5mm/s to 0.5m/s
|
防水防尘能力
|
IP66(防压力水柱级)
|
上升温度
|
Max 30℃ over ambient temperature at rated voltage/current
|
合乎标准
|
Cenelec EN 50041, EN 50047, IEC 337-1, VDE 0660
|
操作温度
|
-5℃~+65℃ (with no icing)
|
保存温度
|
-5℃~+65℃ (with no icing)
|
湿度
|
95% RH Max.
|
冲击系数
|
Mechanical durable: 1000m/s2 min.
|
Malfunction: 300m/s2 min.
|
振动频率
|
Malfunction: 10 to 55Hz, 1.5mm double amplitude
|
端子螺丝扭力
|
6-8 kgf-cm
|
其他螺丝扭力
|
Cover 12-14 kgf-cm/Head 8-9 kgf-cm/Mounting 50-60 kgf/cm
|
裸铜线尺寸
|
φ2 Max
|
电缆尺寸
|
φ12 Max(IP 65 if use cable φ8-9)
|
注:带弹簧系列产品,操作体的使用范围为从弹簧的前端到弹簧全长的1/3以内。
